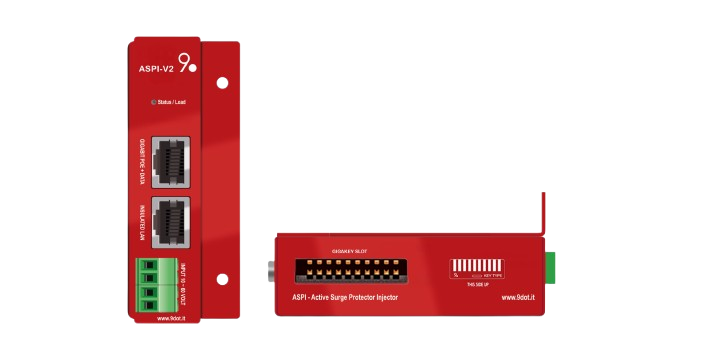

ASPI V2

Wireless Gigabit Surge Protector Injector
with Active Protections

Features

Simple installation & easy integration

ASPI V2 is a versatile device that provides effective electrical protection for powered devices, operating both as a standalone unit and as part of the 9dot ecosystem. Thanks to its secure wireless connection, it connects to 9dot devices equipped with a control module to enable remote control via a simple and intuitive interface, integrating seamlessly with web-based and SNMP management systems.

Short circuit protection

The PoE port features comprehensive protection against short circuits, overcurrent, and overvoltage, with automatic recovery once the electrical event has ended, ensuring operational continuity without the need for physical intervention. Galvanic isolation ensures a stable power supply, eliminating interference and enhancing system safety.

More power

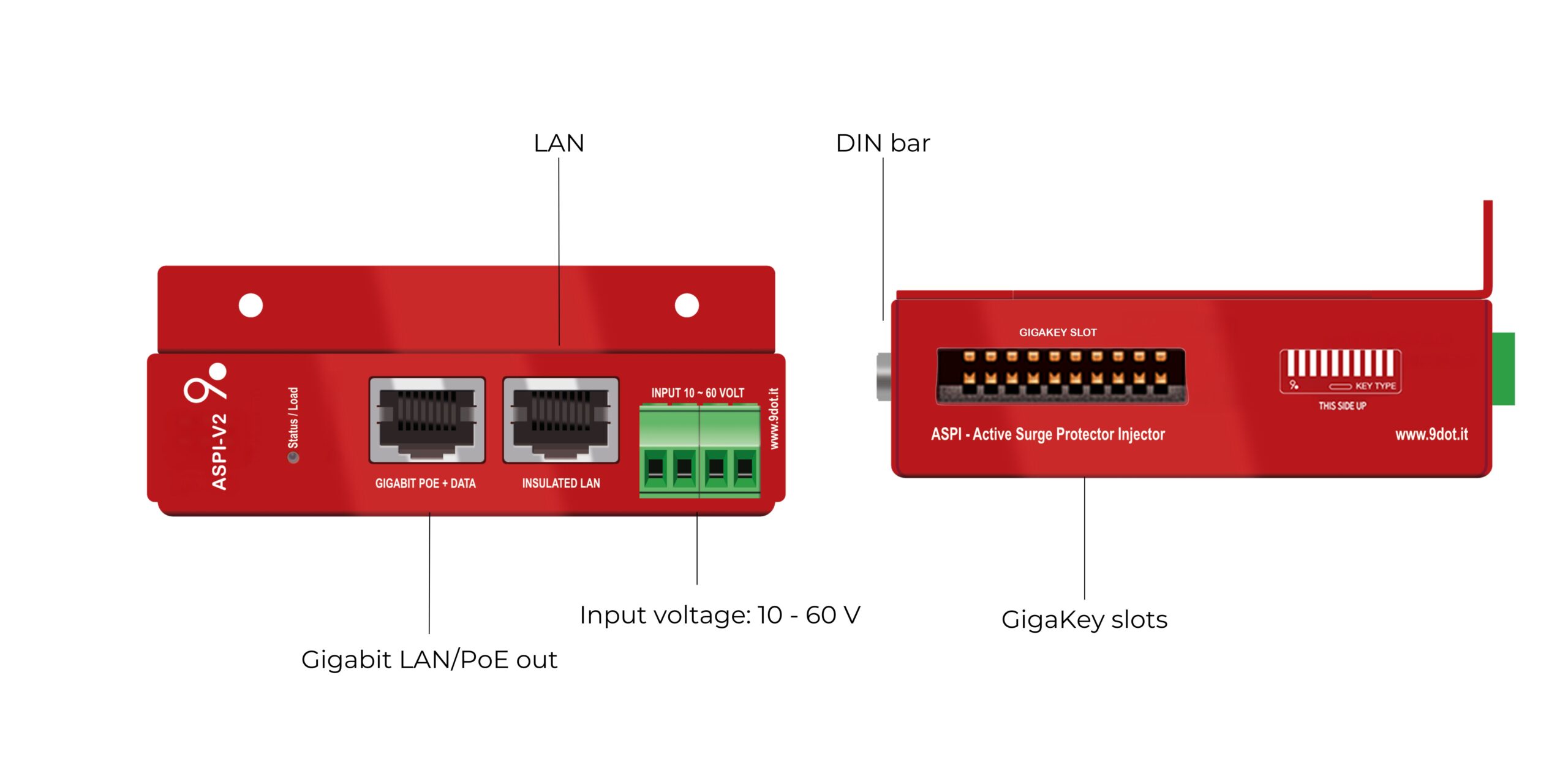

A compact device that can be mounted on a DIN rail or in a rack cabinet using its own brackets, yet capable of handling a load of up to 3A (180W @ 60V) per PoE port.

Gigabit PoE

10GbE PoE port designed for high-performance equipment, capable of providing protected power and high-bitrate data transmission over a single Ethernet connection.

Manages every kind of PoE

The PoE pin-out configuration is performed via the innovative GigaKey, which allows devices to be powered using any PoE scheme. Changing the pin-out is instantaneous: simply replace the GigaKey to adapt to the connected device, without any hardware or software modifications.

Certified partners

To ensure maximum compatibility and versatility, this product was specifically developed to support devices from some of the leading suppliers in the telecommunications industry, such as Cambium, SIAE Microelectronics, Ceragon, Intracom Telecom, Mimosa, and Siklu.
